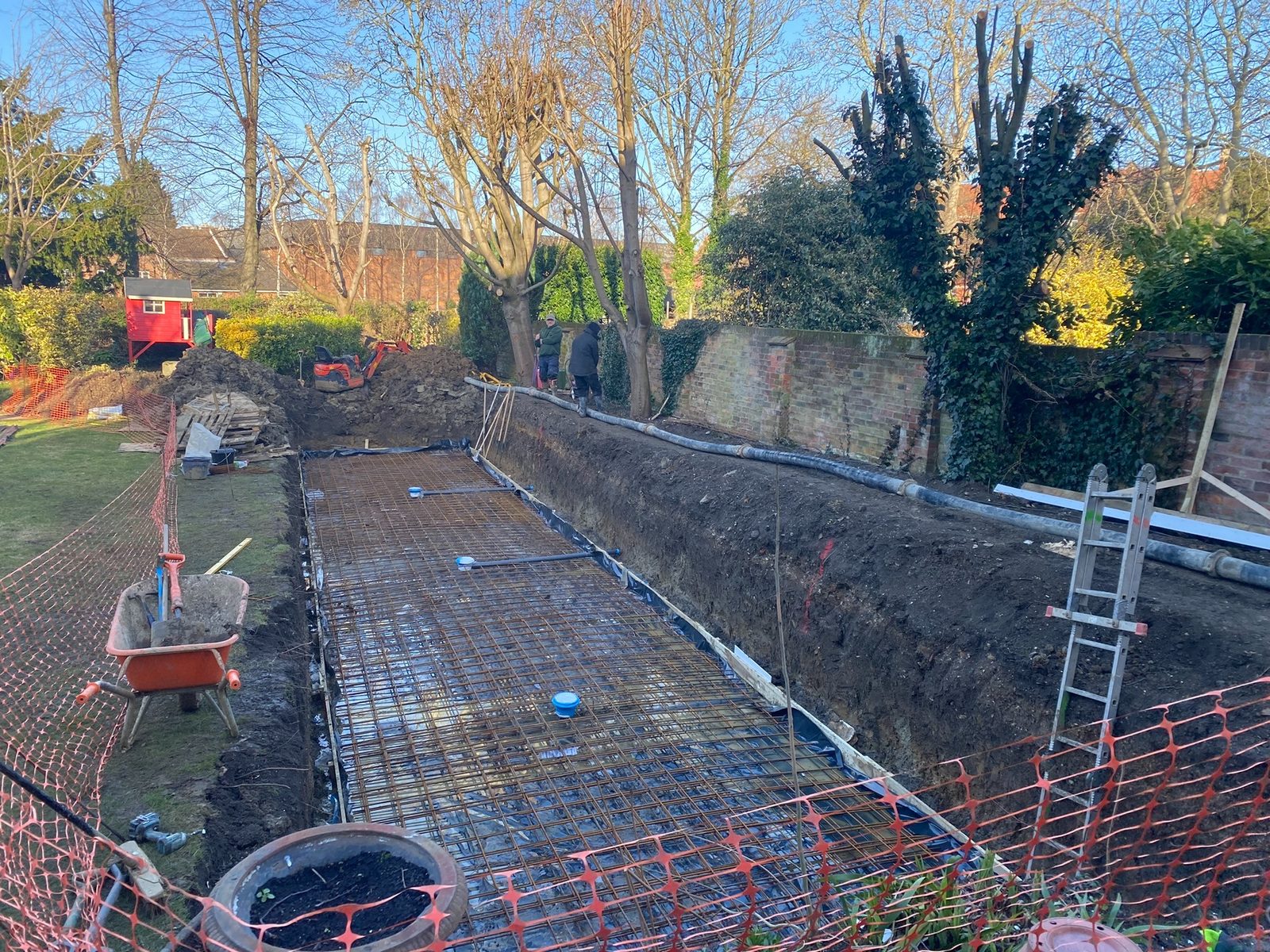

Stage 1
Base preparation and steel
The pool area is excavated and prepared before reinforcement is installed ready for concrete.

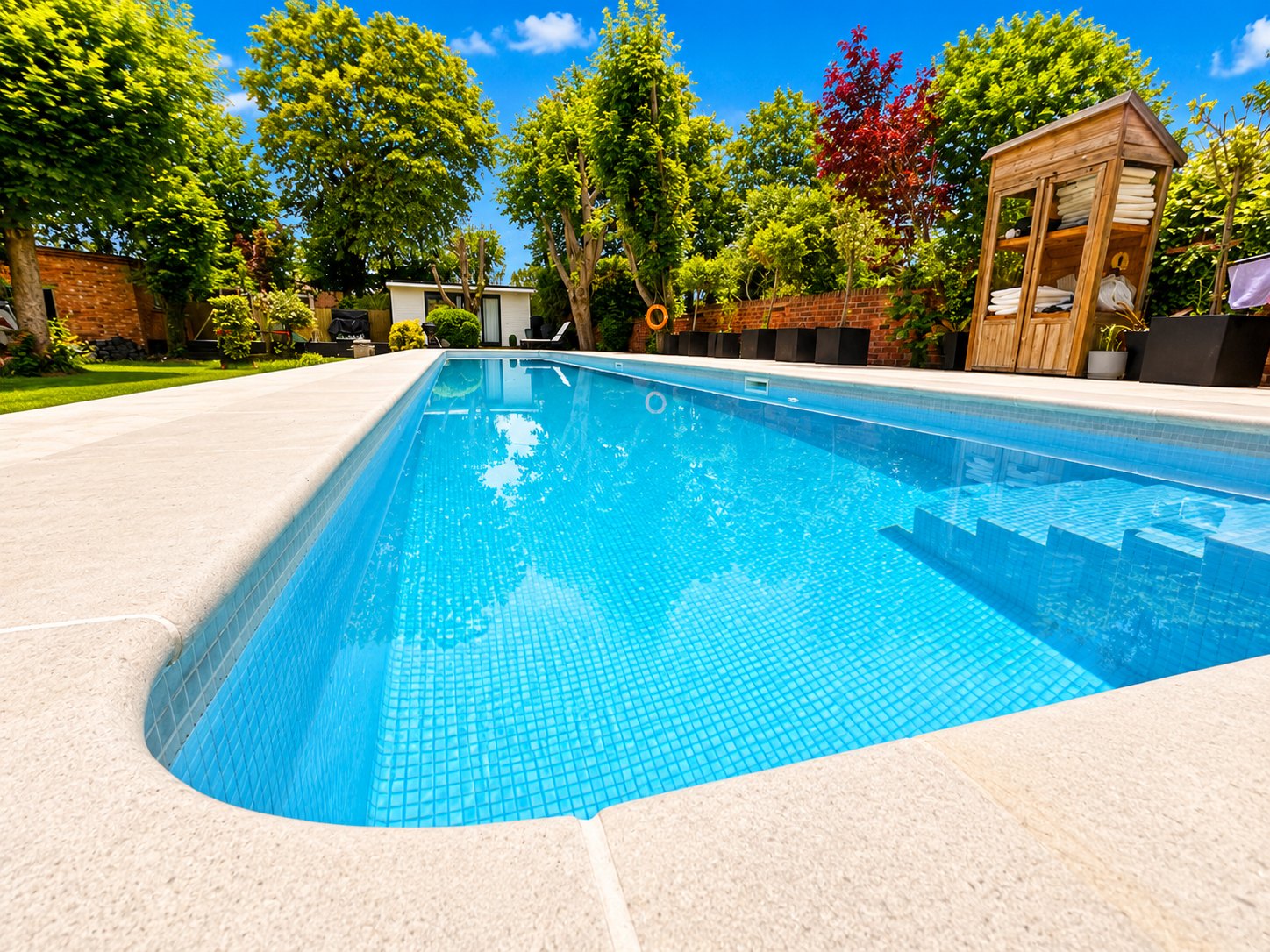

Premium tiled in-ground swimming pools
Luxury glass mosaic pools built for a high-end garden finish.
A clear guide to popular tiled in-ground pool sizes, premium glass mosaic finishes, optional heat pumps and realistic budget levels before survey.
From £52,975Main pool guide price inc. VAT
4–8 weeksTypical construction programme
Glass mosaicRecommended premium tile finish
Compact setupPump and filtration in one tech box
Why tiled?
A tiled pool gives a proper luxury finish.
A tiled in-ground pool gives a far more premium finish than a standard liner pool. It creates a permanent, high-end feel and can become the centrepiece of a garden.
Our pools are designed for customers who want a proper tiled finish, clean lines, a compact pool equipment setup and a bright reflective water appearance.
1
Premium Finish
Glass mosaic tiles create depth, colour movement and a brighter water appearance.
2
Solid Construction
In-ground construction with concrete, reinforcement and tiled finish.
3
Compact Plant
Pump and filtration equipment housed neatly together in a compact tech box.
4
Clear Pricing
Guide prices for popular sizes before survey and final specification.

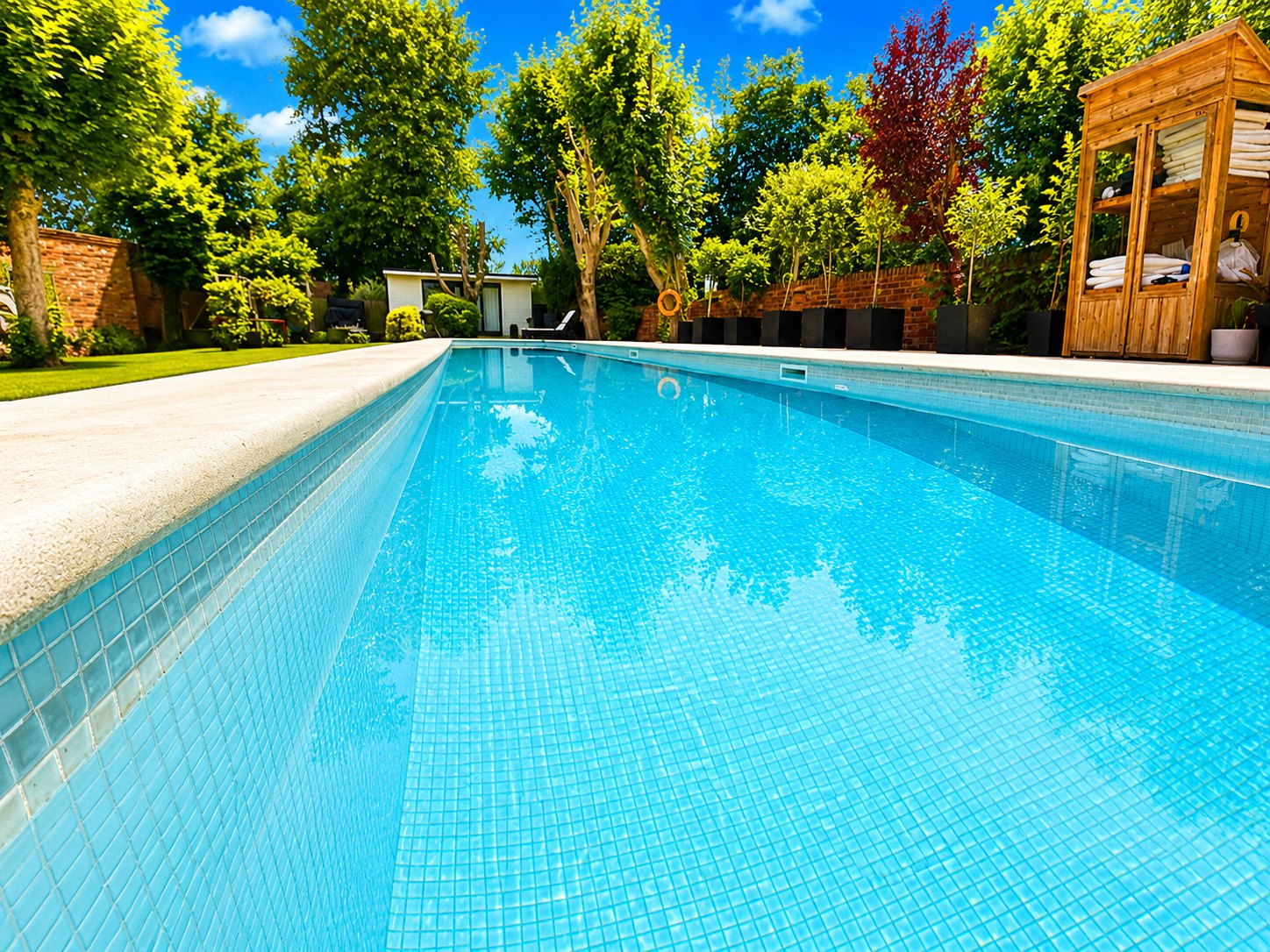

Recommended tile finish
The tile is what creates the “million-dollar pool” look.
For a premium finish, we recommend a glass mosaic tile such as H531 Ibiza Part Iridescent 23.5mm Glass Mosaic.
The iridescent glass reflects light through the water, creating depth, movement and colour variation. This gives the pool a brighter, cleaner and more luxurious appearance than a flat or basic tile finish.
Customers are welcome to source tiles directly, or we can help source them at cost once the final tile style and finish has been confirmed.
Pool equipment
Compact, tidy and easier to plan around.
The equipment setup is one of the main advantages of this type of pool system. The pump, filter and pipework are kept neatly together, avoiding the need for a large separate plant room or excessive plumbing space.

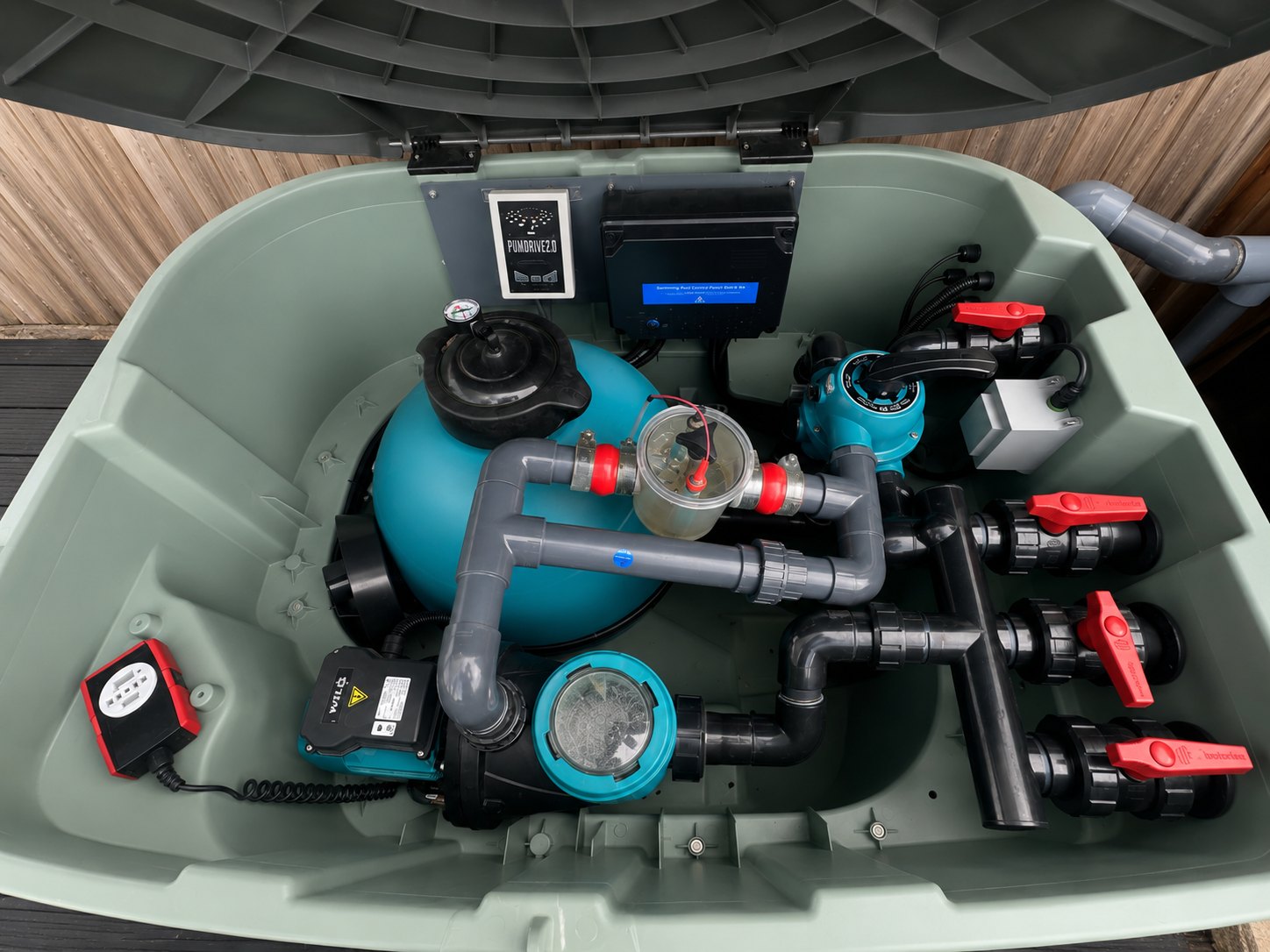

Compact Pool Tech Box
The pump and filtration equipment are housed together in a compact tech box. This keeps the system tidy, contained and easier to position discreetly within the garden layout.
- Pump and filtration equipment kept together
- Neater than a large plant room
- Helps reduce wasted space
- Easier to plan around the garden design

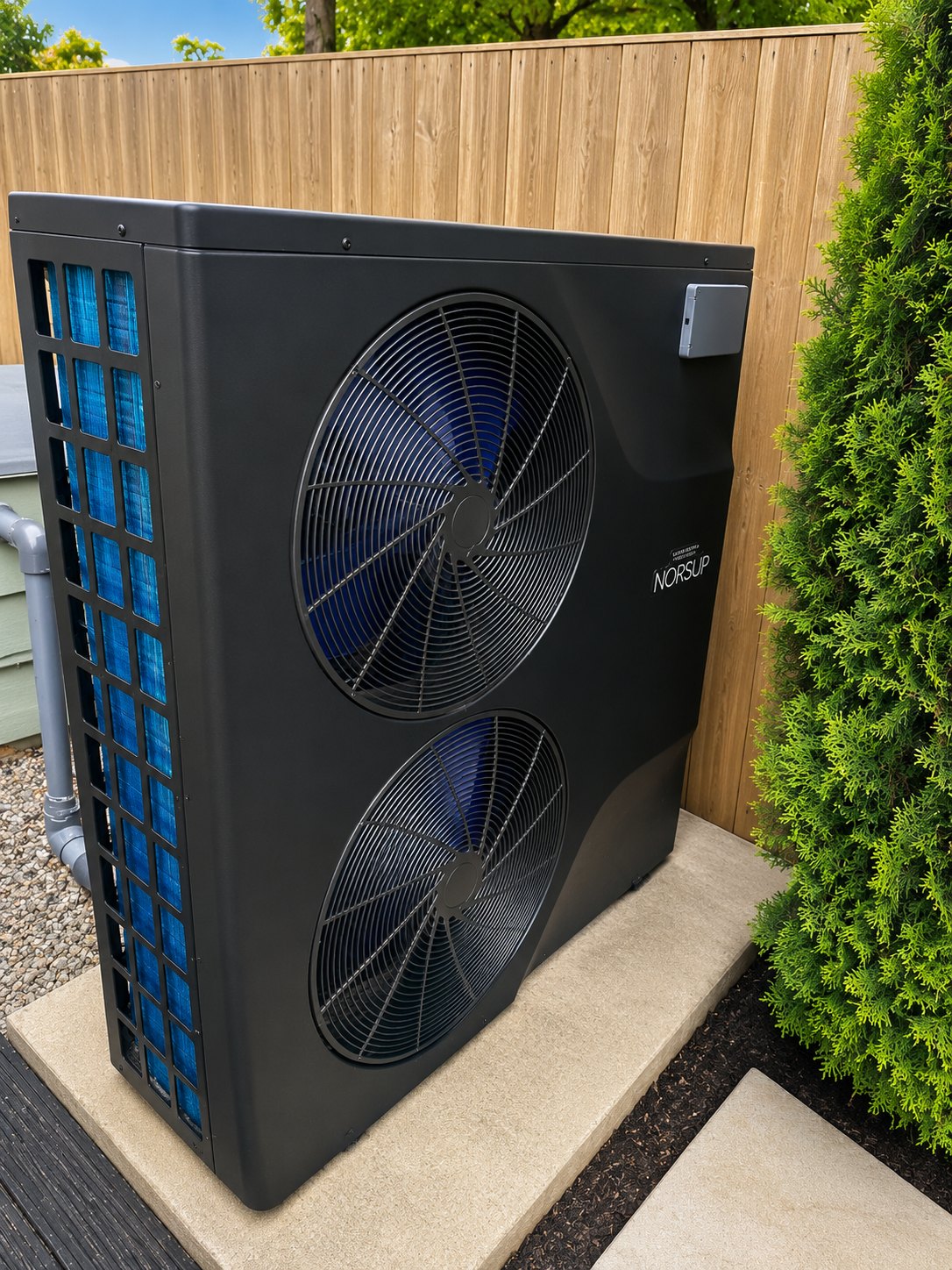

Optional Air Source Heat Pump
An air source heat pump can be added as an optional extra where customers want to extend pool use and improve water temperature comfort.
The heat pump is priced separately so customers can choose whether to include it within the project.
How we build your pool
A structured build process from excavation to tiled finish.
Our swimming pools are not just designed to look exceptional when finished. They are built using a structured installation process from excavation and reinforcement through to the final tiled finish.

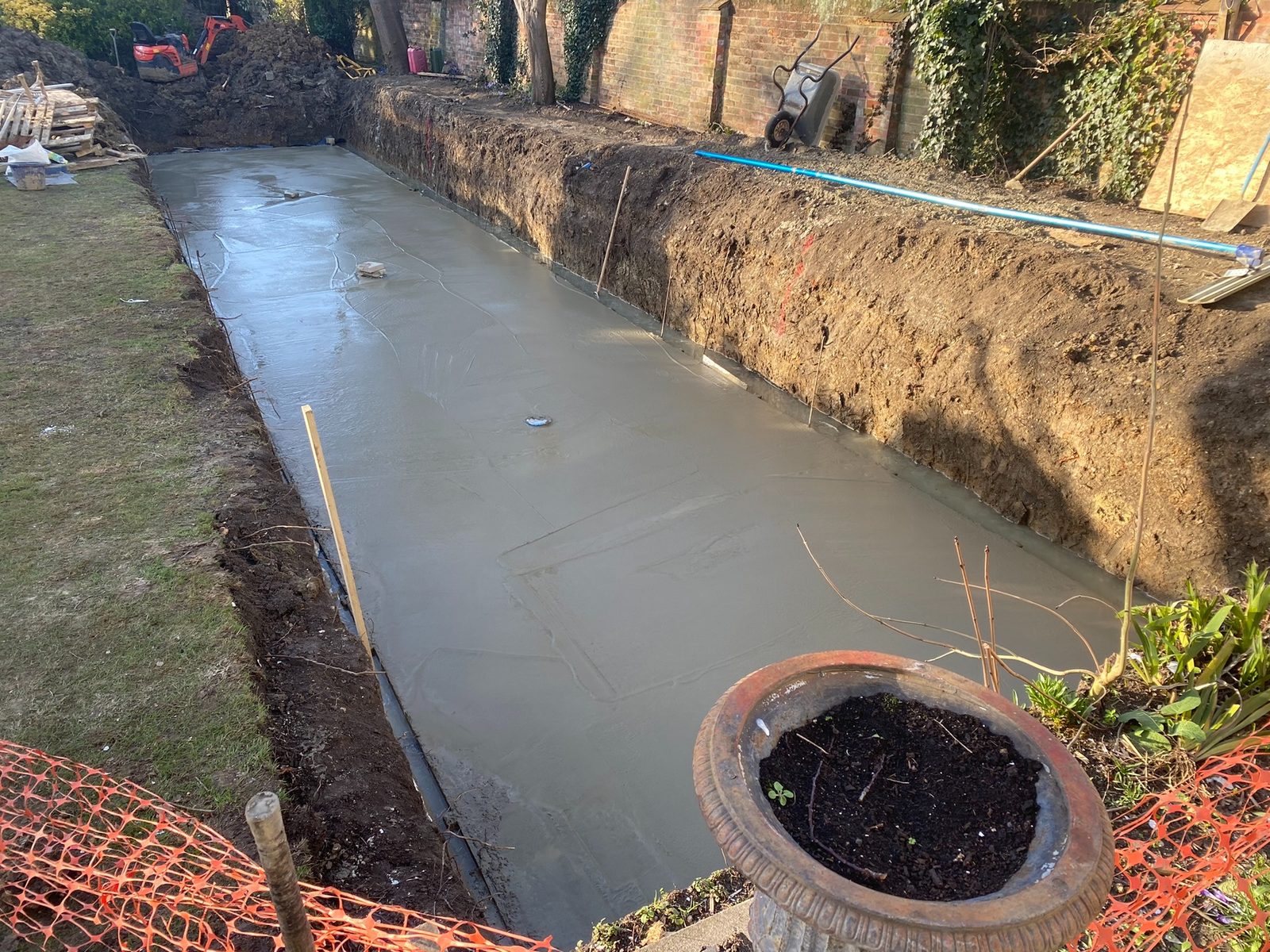

Stage 2
Concrete base
The reinforced concrete base is installed to create the foundation for the pool structure.

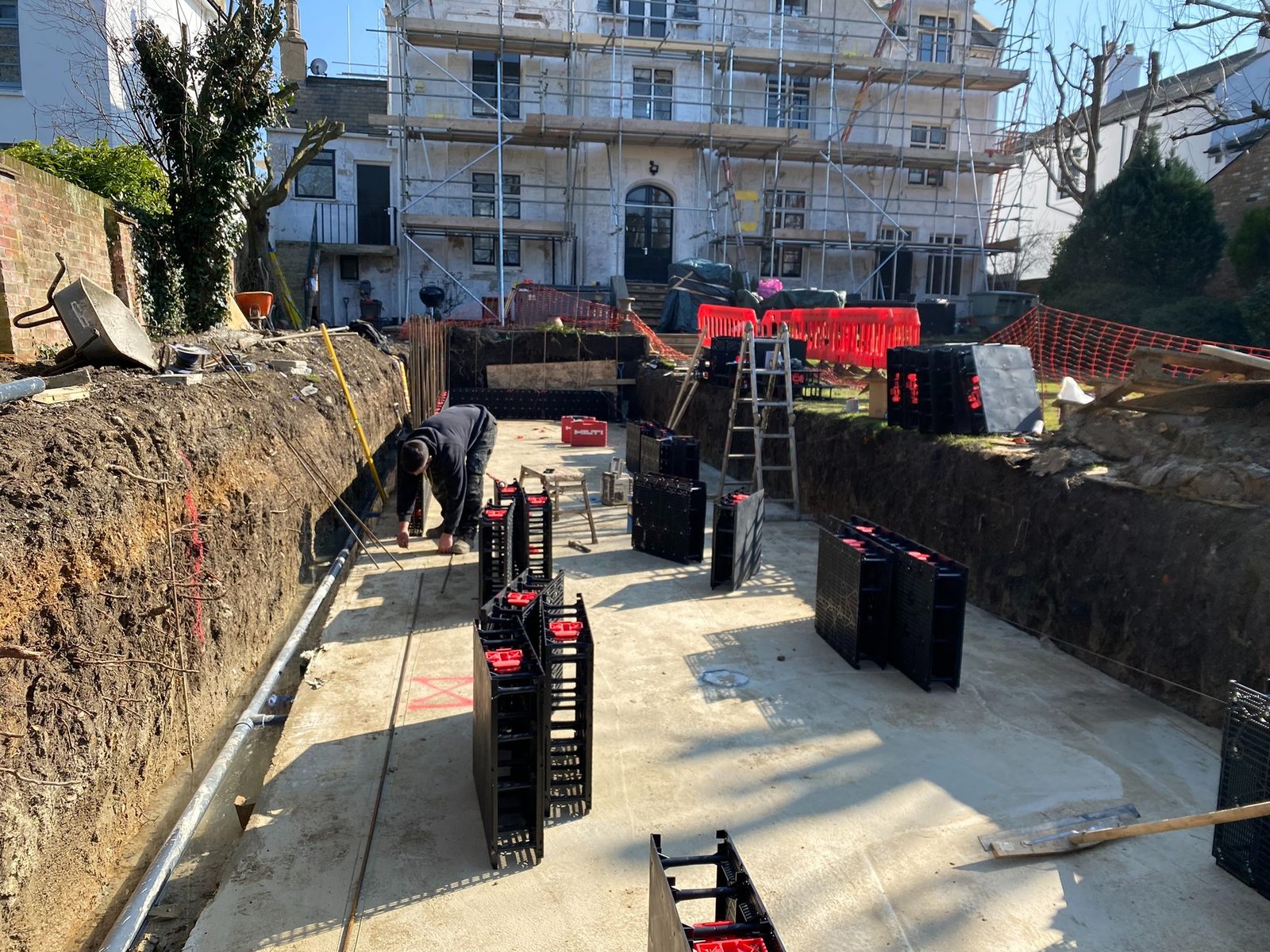

Stage 3
Wall system starts
The pool wall system is set out on the slab and checked as the shell begins to take shape.

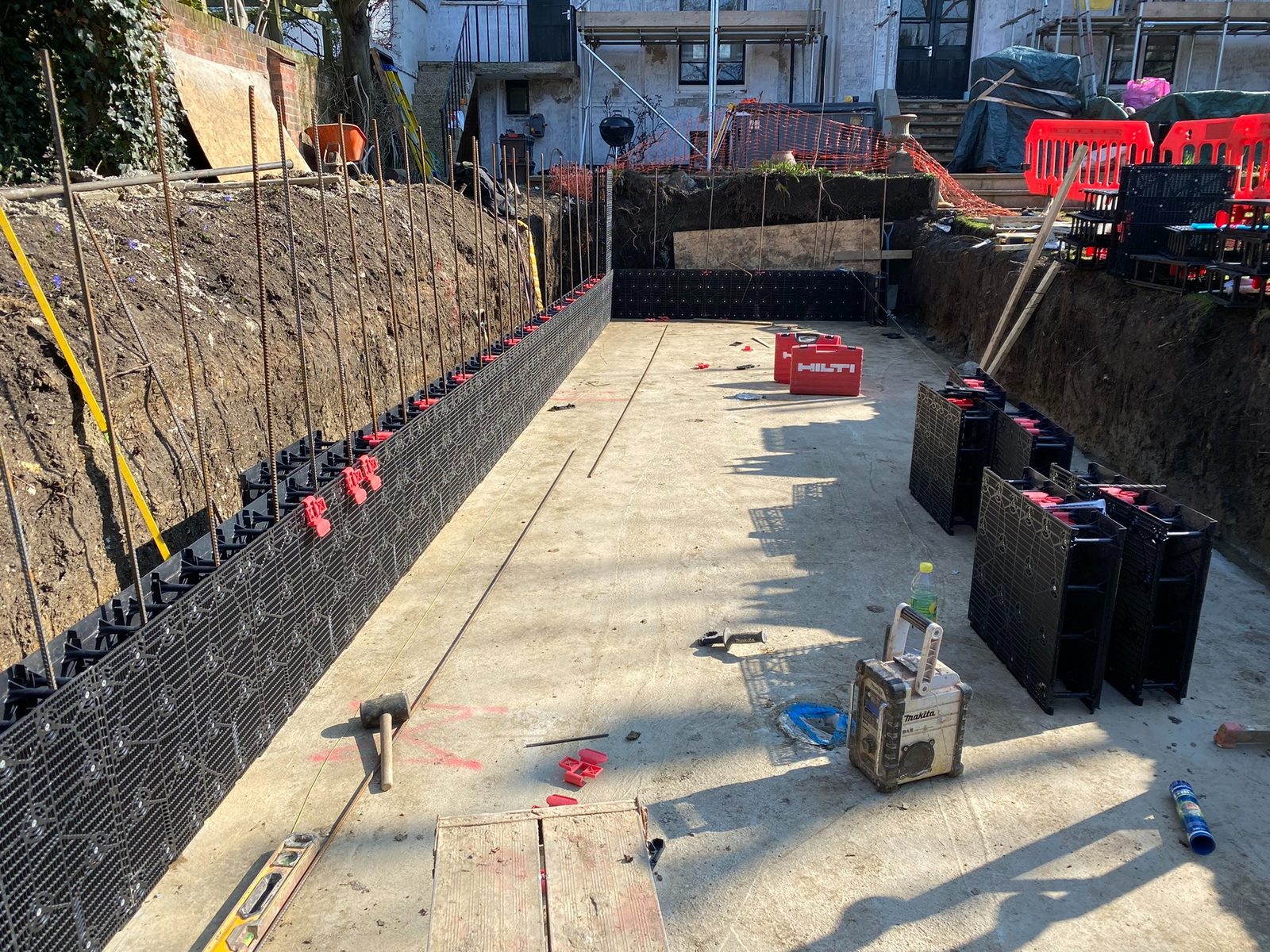

Stage 4
Walls and reinforcement
Wall sections, reinforcement and pipework are built up before the concrete works continue.

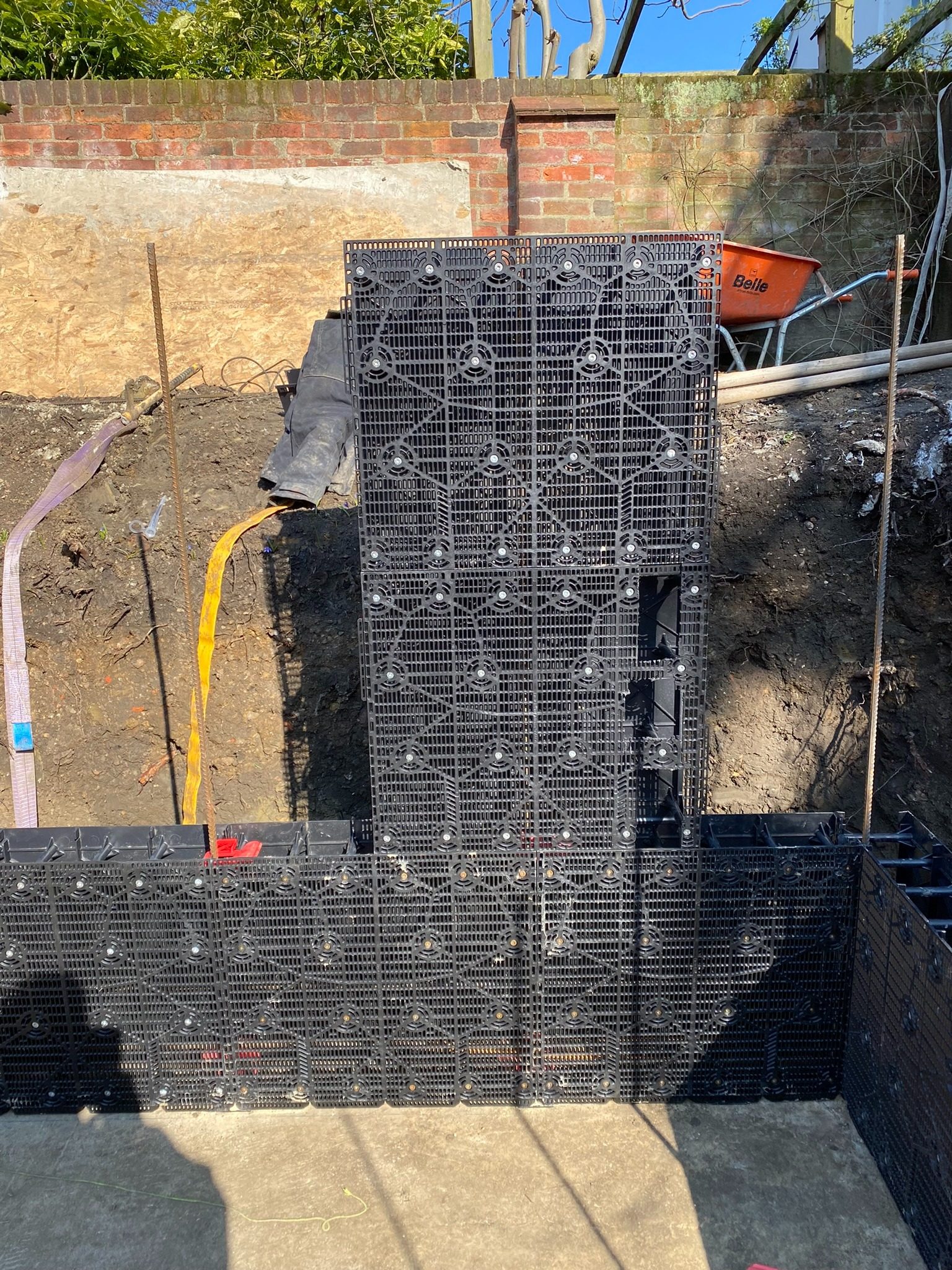

Stage 5
Pool shell takes shape
The full pool shell becomes visible as the structure progresses through the main build phase.

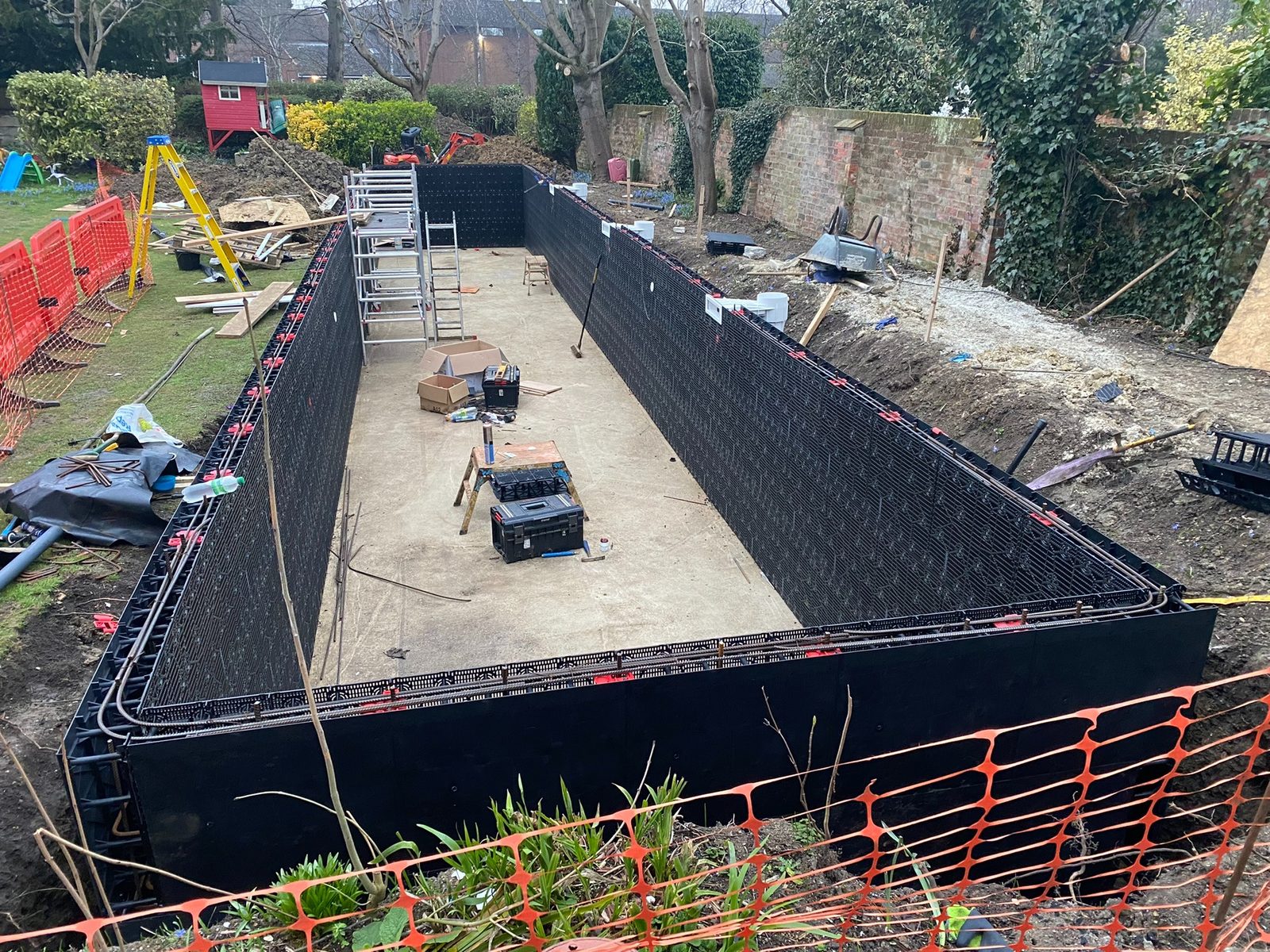

Stage 6
Detail and finishing preparation
The structure is prepared for the next stages, including services, concrete, tiling and finishing works.
Guide prices
Popular pool sizes and prices.
The prices below are guide prices for the main pool construction. They include the core construction works but exclude the purchase cost of tiles and the optional air source heat pump, which are shown separately.
All prices include VAT.
5.9m x 3.48m
1.63m depth · 33.47m³
Main pool from
£52,975
4.09m x 7.72m
1.63m depth · 51.47m³
Main pool from
£63,650
18m x 2.88m
1.63m depth · 84.50m³
Main pool from
£93,700
5.3m x 10.14m
1.63m depth · 87.60m³
Main pool from
£97,140
5.9m x 11.35m
1.63m depth · 109.15m³
Main pool from
£121,040
| Pool Size | Depth | Approx. Volume | Main Pool Price Inc. VAT |
|---|---|---|---|
| 5.9m x 3.48m | 1.63m | 33.47m³ | £52,975.00 |
| 4.09m x 7.72m | 1.63m | 51.47m³ | £63,650.00 |
| 18m x 2.88m | 1.63m | 84.50m³ | £93,700.00 |
| 5.3m x 10.14m | 1.63m | 87.60m³ | £97,140.00 |
| 5.9m x 11.35m | 1.63m | 109.15m³ | £121,040.00 |
Included
What is included in the main pool price?
The main pool guide price includes the core works required to construct the pool, subject to standard site access and ground conditions.
- Pool kit / equipment
- Filter box and pump
- Standard excavation allowance
- Standard spoil removal allowance
- Steel / reinforcement allowance
- Concrete base
- Concrete walls / ring beam
- Concrete pump visits
- Back shingle fill
- Tiling labour, excluding purchase cost of tiles
- Standard pipework and sundries allowance
Optional extras
Tile supply and heat pump options.
The main pool price includes tiling labour but not the tile purchase cost. The optional heat pump is also shown separately.
Tile Supply — shown separately at cost
| Pool Size | Estimated Tile Area incl. Waste | Tile Supply Cost at Cost Price Inc. VAT |
|---|---|---|
| 5.9m x 3.48m | 56.22m² | £2,546.77 |
| 4.09m x 7.72m | 77.08m² | £3,491.72 |
| 18m x 2.88m | 131.90m² | £5,975.07 |
| 5.3m x 10.14m | 114.48m² | £5,185.94 |
| 5.9m x 11.35m | 135.52m² | £6,139.06 |
Optional Air Source Heat Pump
| Pool Size | Optional Heat Pump Inc. VAT |
|---|---|
| 5.9m x 3.48m | £8,422.62 |
| 4.09m x 7.72m | £8,422.62 |
| 18m x 2.88m | £14,226.72 |
| 5.3m x 10.14m | £14,226.72 |
| 5.9m x 11.35m | £16,742.55 |
Full Guide Price Summary
| Pool Size | Main Pool Inc. VAT | Tiles at Cost Inc. VAT | Heat Pump Inc. VAT | Main Pool + Tiles | Main Pool + Tiles + Heat Pump |
|---|---|---|---|---|---|
| 5.9m x 3.48m | £52,975.00 | £2,546.77 | £8,422.62 | £55,521.77 | £63,944.39 |
| 4.09m x 7.72m | £63,650.00 | £3,491.72 | £8,422.62 | £67,141.72 | £75,564.34 |
| 18m x 2.88m | £93,700.00 | £5,975.07 | £14,226.72 | £99,675.07 | £113,901.79 |
| 5.3m x 10.14m | £97,140.00 | £5,185.94 | £14,226.72 | £102,325.94 | £116,552.66 |
| 5.9m x 11.35m | £121,040.00 | £6,139.06 | £16,742.55 | £127,179.06 | £143,921.61 |
Groundworks
Additional groundworks and landscaping.
The guide prices include a standard excavation and spoil removal allowance. Additional groundworks may be required depending on site access, ground conditions, water table, retaining requirements, drainage, soil removal or levels around the garden.
Where suitable, we can also look at re-using some of the excavated soil to form a landscaped earth barrier or bund. This may help reduce waste away and can also help create a degree of water diversion or flood protection, subject to soil suitability and final site levels.
Landscaping around the pool is not included in the main pool price but can be quoted separately.
What is not included?
- Additional groundworks outside the standard excavation allowance
- Landscaping around the pool
- Additional site access issues
- Difficult ground conditions, rock, roots, water ingress or unexpected obstructions
- Additional spoil removal beyond the standard allowance
- Retaining walls, drainage works or structural works outside the pool construction
- Electrical supply to the pool equipment
- Purchase cost of tiles, shown separately above
- Air source heat pump, shown separately above
- Planning, building control or professional fees, if required
Estimated lead time
Subject to final site survey, design confirmation and supplier availability, we would estimate:
| Site survey, final design and confirmation | 1–2 weeks |
| Ordering pool kit / materials | 2–4 weeks |
| Pool construction programme | approx. 4–8 weeks |
| Additional groundworks, if required | subject to scope |
Estimated overall lead time from confirmation is usually around 8–14 weeks, depending on supplier lead times, site access, weather, ground conditions, concrete curing times and the final scope of works.
Next steps
Request a swimming pool estimate.
The first step is to arrange a short discussion and site review. Following this, we can confirm suitable pool size, access for excavation, soil removal, equipment location, tile choice, heat pump requirement, landscaping requirements and final specification.
Important notes
Guide prices only.
This page is intended as a guide price only. All prices are subject to confirmation following a full site survey, access check, ground condition review, supplier confirmation and final design.
Changes to pool depth, specification, access, ground conditions, materials or customer requirements may affect the final price. Supplier prices and material costs can change, so all pricing is subject to confirmation at the point of order.
